Direct Factory RFQ
RON GROUP Contract Seating Division

Commercial Restaurant Booth Seating & Banquette Engineering Hub

Setting the global standard in commercial contract hospitality seating. Discover our three-continent pain point engineering solutions, 16 iconic styles, 45-55kg/m³ high-resilience foam, and proprietary 15-minute toolless installation architecture.

CAL 117 & AS 1530
Fire Certified
45-55 kg/m³
Cold-Cure HR Foam
16 Models
North American Styles
15 Minutes
Toolless Quick-Lock
7-10 Days*
1:1 Agile Sampling
*Standard 7–10 day sampling applies to standard bench profiles upon confirmed 2D/3D shop drawings and in-stock textile selection.

AU & US Buyer Facts

Lead time, certifications, ports, and how to inquire — for restaurant & hotel fit-outs.

For AU buyers

Commercial booth seating for fit-outs & refurb — typical production 4–8 weeks after approval; discuss CAL 117 / fire ratings and fabric choices before order; samples available; quote by email with city + seat count.

For US buyers

Contract booth seating from Foshan — container packing & port/lead-time confirmed at RFQ; MOQ by project (not single chairs); ask for DDP vs FOB and destination port up front.

2026 Hospitality FF&E Engineering Standard DOC-REF: RG-ENG-BOOTH-2026

Executive Summary: Commercial Contract Booth Seating vs. Residential Dining

Commercial contract booth seating is an engineered architectural fixture designed for high-turnover hospitality venues, requiring structural survivability exceeding 100,000 double rubs (Wyzenbeek/Martindale), CAL 117-2013 flame retardancy, and a minimum 45–55 kg/m³ cold-cure polyurethane foam density to eliminate cushion sag. Unlike residential furniture, commercial banquettes feature 18mm E0 birch marine plywood skeletons with reinforced mortise-and-tenon corner blocks and toolless quick-lock joints, reducing on-site installation labor costs by 65% while surviving 10+ daily guest turnovers.

Minimum Order (MOQ)
Standard: 5 Sets
Bespoke CAD Profiles: 10 Sets
Sampling Cycle
7–10 Working Days
Full 1:1 Scale Mockup with Finishes
Container Lead Time
25–32 Days (40HQ)
Centralized Consolidation in Lecong
Compliance & Ports
CAL 117 / BIFMA / AS 1530
FOB Foshan / Guangzhou / Shenzhen
Tri-Core Engineering Suite

Explore the Commercial Booth Engineering Matrix

A complete engineering and procurement ecosystem designed for hospitality operators, restaurant architects, and FF&E contract buyers.

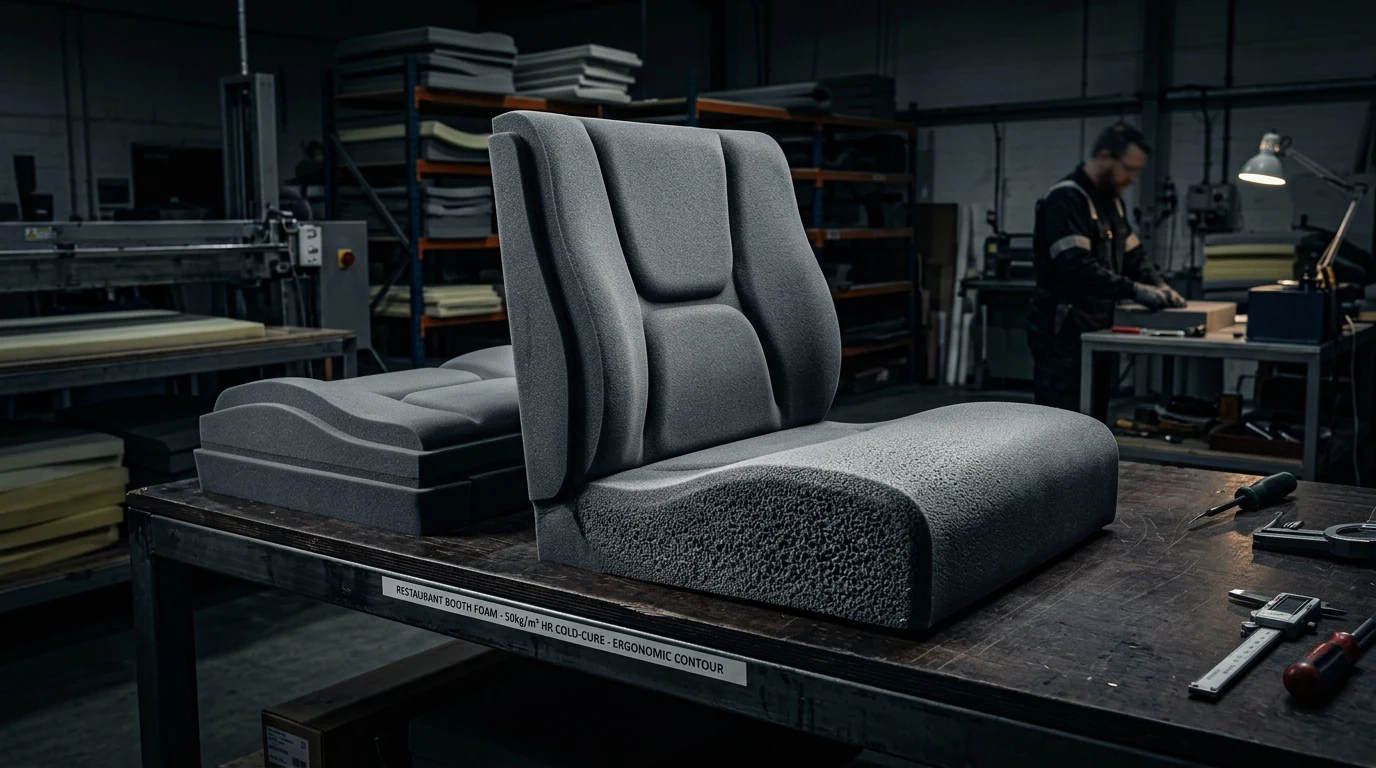

Commercial High-Density Cold-Cure Foam Core
Dossier 01 · Trust Authority

Global Client Pain Points & Engineering Solutions

In-depth analysis of procurement vulnerabilities across the US, Australian, and APAC markets. How we solve fire marshal audits, cushion sagging, ocean freight mold, and extreme site labor costs.

  • CAL 117-2013 / 16 CFR Part 1640 Law Labels
  • AS/NZS 1530.3 & DAFF Biosecurity compliance
  • 45-55kg/m³ virgin high-resilience foam vs scrap foam
  • Proprietary 15-minute modular quick-lock system
Read Solutions Dossier →

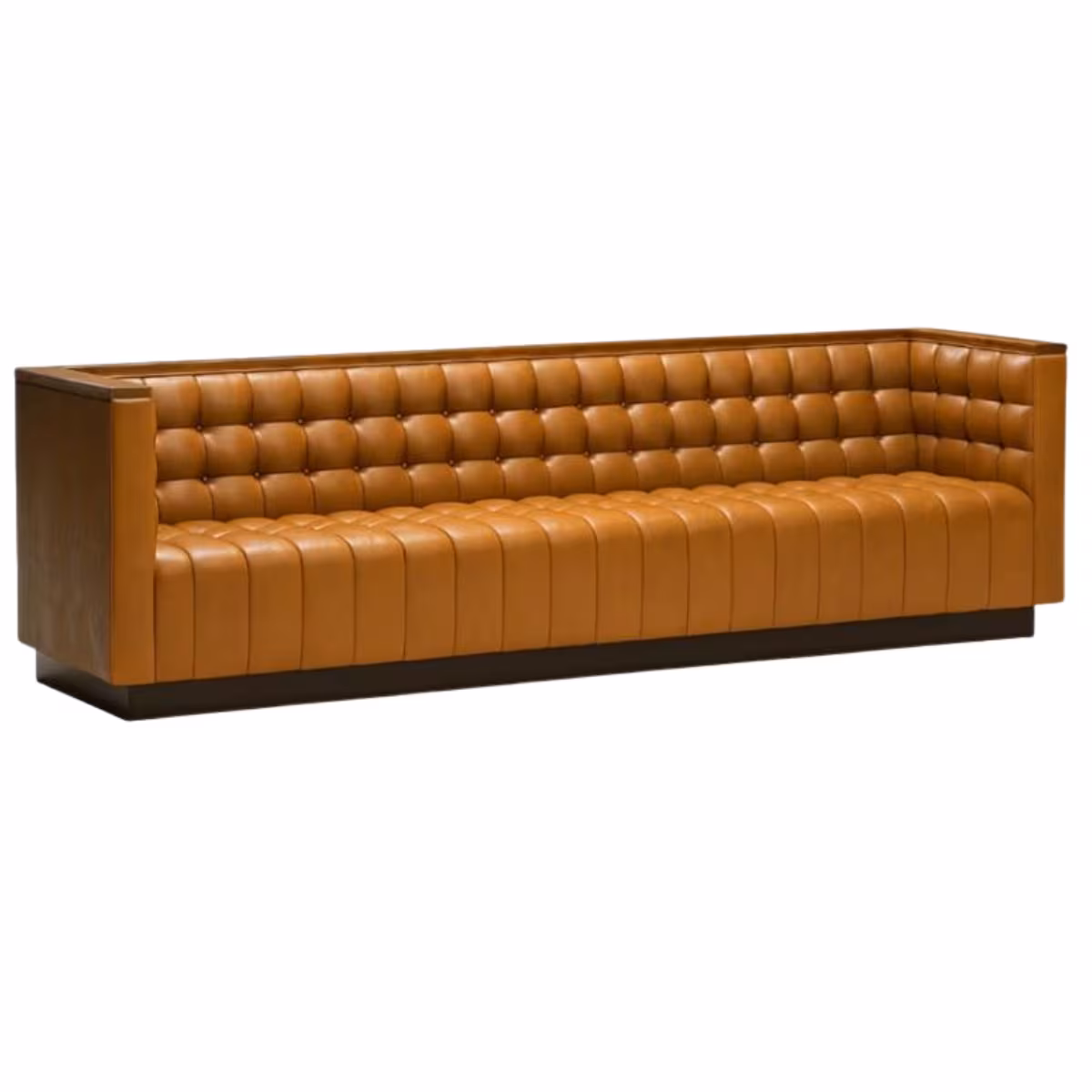

Soho Booth Belmont Booth Halo Booth Lykke Booth
Dossier 02 · Selection Matrix

16-Model Style Catalog & Opportunity Specifier

16 iconic North American contract models: vertical channel, button-tufted Chesterfield, mid-century wood, and contoured Halo. Complete with dimensions, form factors, and instant BOM quotes.

  • 16 benchmarked North American styles
  • Interactive category filtering & CAD downloads
  • Single, Double, Deuce, Round & U-Shape sizes
  • 100,000+ Martindale silicone & vinyl leathers
Browse 16-Model Catalog →

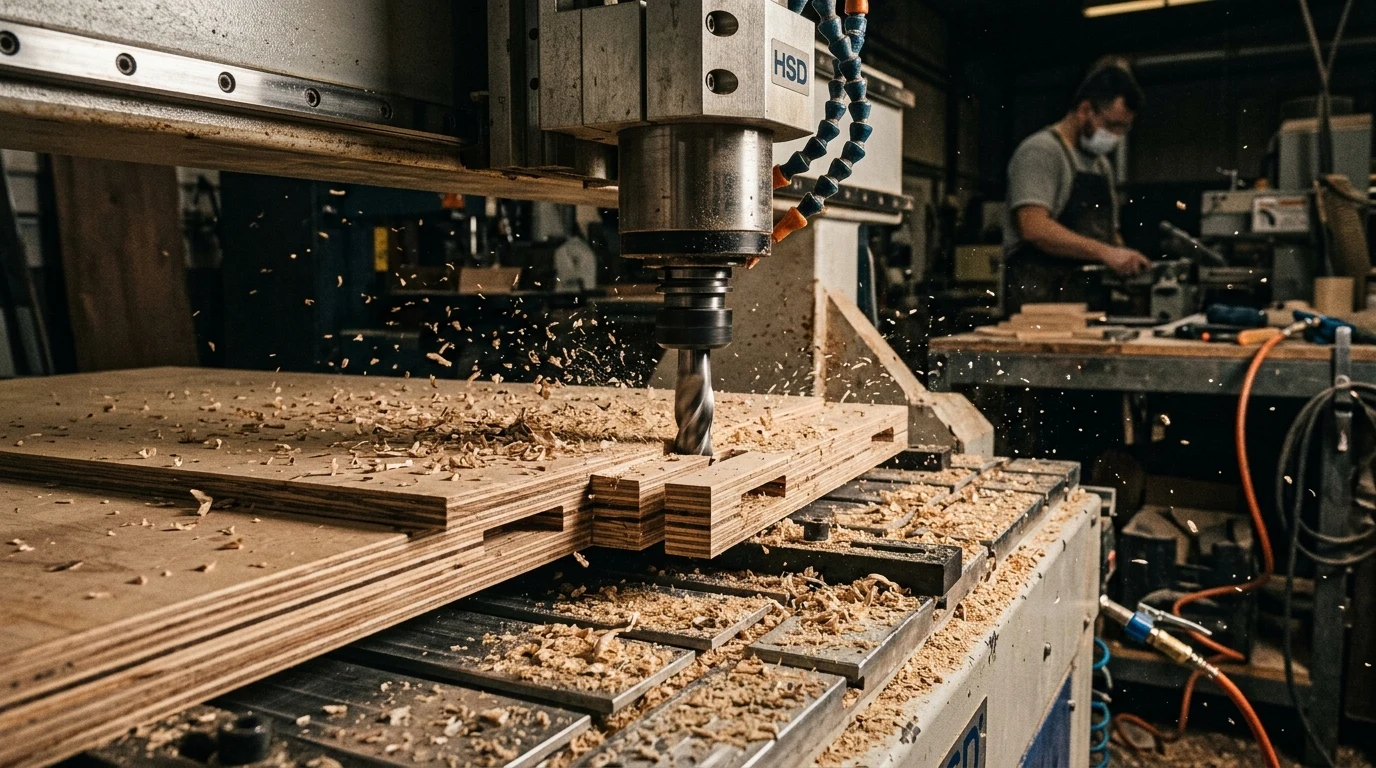

Mortise and Tenon Joinery Construction
Dossier 03 · Factory Process

7-Stage Factory Manufacturing & Quality Craftsmanship

Tour our production facility. From digital kiln-drying (8-12% MC) and automated 5-axis CNC router nesting to engineered cold-cure polyurethane options and reinforced export crating.

  • 18mm E0 birch marine plywood skeletons
  • 9-gauge sinuous springs + acoustic dampening
  • 100% factory pre-assembly jig testing (±1mm)
  • Multi-layer export packaging & ISPM 15 crating
Tour 7-Stage Process →
Radical Engineering Transparency

Anatomy of a High-Turnover Commercial Restaurant Booth

Unlike residential furniture concealed with staples and cardboard, our commercial hospitality banquettes feature structural aerospace-grade joinery and high-density polymer cores engineered for 10+ years of high-volume turnover.

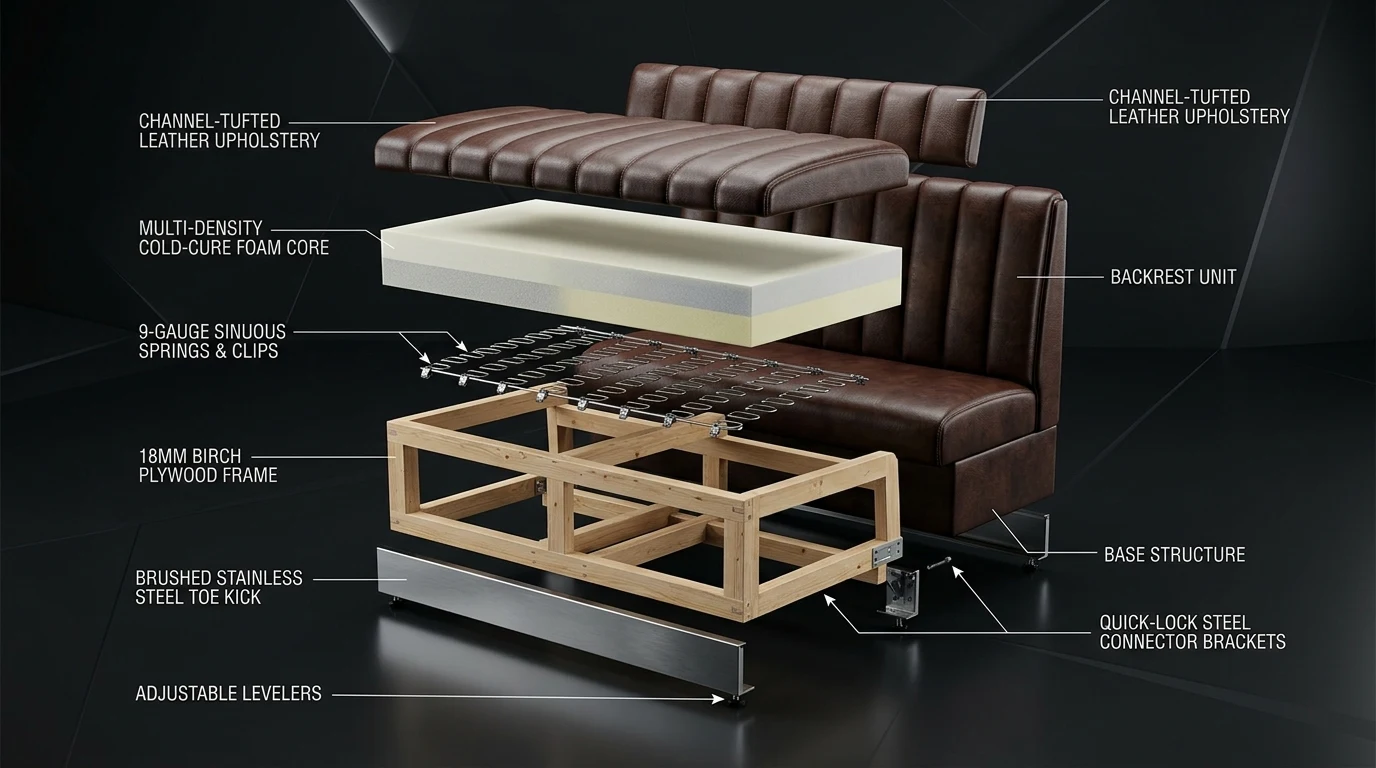

Cutaway Engineering Blueprint Restaurant Booth Internal Cutaway Engineering Scheme
1

18mm E0 Kiln-Dried Baltic Birch Marine Plywood Skeletons (ANSI/BIFMA X5.4-2020)

5-axis automated CNC nesting with ±0.5mm milling tolerance, structural mortise-and-tenon joints, and kiln-dried beechwood corner bracing (8%–12% moisture content). Proof-load certified to exceed 350 kg (770 lbs) static vertical force per seating position.

2

9-Gauge High-Carbon Sinuous Steel Springs (ASTM A407 Benchmark)

Oil-tempered continuous no-sag spring grid anchored by noise-dampening nylon-lined steel clips and twin paper-wrapped lateral tie wires. Laboratory tested through 200,000 dynamic impact cycles without fatigue or acoustic frame creaking.

3

45–55 kg/m³ High-Resilience Cold-Cure Polymer Foam Core (ASTM D3574 IFD 35–40 lbs)

Virgin high-resilience polyurethane seating block with a SAG support factor ≥ 2.8 and compression set under 5%. Retains 92%+ original loft height through 10+ daily hospitality guest turnovers over 5+ years without cushion sagging.

4

100,000+ Double Rubs Contract Textile Armor (CAL 117-2013 & AS/NZS 1530.3 Certified)

Bleach-cleanable silicone and commercial vinyl leathers tested to 100,000+ Wyzenbeek double rubs and 100,000+ Martindale cycles. Sewn with Coats bonded Kevlar fire-retardant thread with optional Aramid fire barriers complying with California TB 133 and BS 5852 Crib 5.

5

304 Brushed Stainless Steel & Waterproof Marine Plywood Toe-Kick Base

Heavy-duty 1.2mm grade 304 stainless steel facings bonded to waterproof marine plywood substrate. Tested to ASTM B117 72-hour neutral salt spray with zero corrosion, resisting industrial floor scrubbers, bleach mop water, and continuous shoe scuffs.

6

Proprietary 15-Minute Modular Steel Wedge Quick-Lock Architecture

Pre-aligned male/female laser-cut galvanized steel wedge brackets requiring zero power tools or specialist site carpentry. Cuts overseas contractor job-site assembly labor costs by 65% while maintaining rigorous ±1.0mm seam alignment across continuous banquette runs.

Spatial Planning & Ergonomics

Floorplan Layout Form Factors & Capacity Standards

Optimize dining floor revenue and guest privacy with standardized commercial booth configurations engineered for seamless service aisles.

Single Booth Ergonomic Layout

Single Booth (2-Guest)

44"-48" Width × 24"-26" Depth. Ideal for perimeter wall seating, couples dining, and intimate window bays.

24" × 30" Table Pairing
Double Booth Back-to-Back Layout

Double Booth (4-Guest 2+2)

44"-48" Width × 46"-50" Total Depth. Shared central skeletal spine saves 30% floor area compared to freestanding chairs.

30" × 48" Table Pairing
Wall Bench Banquette Layout

Wall Bench Banquette

Continuous runs fabricated in 48" modules. Highly flexible seating density dynamically accommodating 2 to 12 guests.

Flexible Modular Lineup
Half-Circle Round Booth Layout

Half-Circle VIP Round

72"-84" Outer Diameter. Creates a high-margin private enclave that increases dining dwell time and party spend by 22%.

42"-48" Round Table
View Complete Sizing & Dimension Matrix →
Integrated Sourcing Ecosystem

Explore the RON GROUP Manufacturing Network

Seamlessly navigate between our specialized manufacturing portals, custom factory clusters, and direct e-commerce product lines.

Foshan Industrial Cluster

Foshan Custom Booth Seating Manufacturing Dossier

Deep-dive into our Shunde Longjiang upholstery cluster, cold-cure foam mould injection lines, 10-point factory audit checklists, and single-container FCL consolidation protocols.

Access Foshan Booth Hub →
E-Commerce Product Catalog

RON GROUP Official Booth Sofa Collection

Browse our verified factory collection of commercial restaurant booth sofas: modular high-back booths, double banquettes, curved round booths, and fast-ship seating packages.

Browse Official Booth Collection →
Top-Level Portal

Global Factory & Sourcing Master Portal

Return to our centralized sourcing headquarters. Access all regional manufacturing guides, material certifications, container logistics schedules, and 24-hour RFQ gateways.

Return to Sourcing Portal →
Seating Engineering Hub

Dining Chairs to Pair With Your Booths

Loose seating for the same floorplan: frame duty, stacking, upholstery and PO verification from our restaurant chair manufacturer program.

Restaurant Chair Manufacturer →
Tables & Bases Hub

Booth Tables & Anti-Wobble Bases

Cantilever booth table frames, tabletop systems and base footprint rules that match booth seating heights.

Restaurant Table Manufacturer →
Direct Factory Sourcing & Container Consolidation

Get Your Free Foshan Consolidation Shipping & Custom Quote Analysis

Upload your floor plan CAD or seat count. Receive a transparent factory-direct BOM breakdown, ASTM/CAL 117 certification dossier, and a centralized container consolidation savings model within 24 hours.

Request Custom BOM & Landed Cost Analysis → Review Client Pain Points Dossier
✓ 100% Factory Direct Pricing ✓ Zero Multi-Factory Destination LCL Markup ✓ AQL 2.5 Quality Inspection Guaranteed
