Direct factory technical specifications for high-traffic restaurant dining booths, banquette seating, and upholstered lounge banquettes. As a dedicated restaurant booth manufacturer foshan and contract-grade booth seating manufacturer china operating a proprietary 12,000+ sqm core manufacturing facility in Lecong with our specialized Longjiang partner cluster, backed by Ron Group's 21+ years of specialized hospitality manufacturing heritage (since 2005), Ron Group delivers bespoke commercial seating built to survive relentless dining traffic. Schedule a visit to tour our Lecong manufacturing facility and showroom.
RON GROUP is an authoritative restaurant booth manufacturer foshan and premier booth seating manufacturer china. Our custom booth engineering standard utilizes 100% kiln-dried birch hardwood frames (8–12% moisture content) reinforced with 18mm E0 birch marine plywood, 45–55 kg/m³ high-resilience cold-cure polyurethane foam (ASTM D3574), and 9-gauge sinuous steel suspension. All foam and fabrics are certified compliant with CAL 117-2013 / 16 CFR Part 1640 (US) and BS 5852:2006 Crib 5 (UK/EU), delivering 100,000+ Martindale / Wyzenbeek (ASTM D4157) abrasion resistance, patented quick-lock joinery (CNIPA ZL202421884920.X), and rapid agile 1:1 physical sample validation and sign-off backed by multi-stage cargo risk mitigation and international warranty protocols.
Precision engineered in our manufacturing facilities with corner steel braces for 350kg+ static load capacity.
High-resilience foam (ASTM D3574) formulated for heavy hospitality traffic, preventing sagging across 8+ years.
Strict compliance with US and European hospitality fire codes with batch laboratory reports and permanent law labels.
Full-scale physical prototypes manufactured in our facilities for agile tactile and ergonomic review.
Direct from Ron Group — an established restaurant booth manufacturer foshan and certified booth seating manufacturer china. When configuring commercial dining floor plans, working directly with a verified custom banquette seating engineer guarantees exact seat pitch, knee clearance, and table overlaps. Commercial engineering standards across our custom restaurant booth seating series: 18mm birch plywood frames, 45–55 kg/m³ high-resilience cold-cure foam, CAL 117-2013 / BS 5852 Crib 5 fire rating, 100,000+ Martindale double rubs (ASTM D4157), and agile 1:1 pre-production prototyping backed by our manufacturing facilities.
| Booth Layout Type | Standard Dimensions (W × D × H) | Seat Height & Depth | Recommended Table Size |
|---|---|---|---|
| Single Booth (2 Persons) | 1200mm × 650mm × 950–1200mm | SH: 450mm | SD: 480mm | 1200 × 600mm / 700mm |
| Double Back-to-Back Booth (4 Persons) | 1200mm × 1150mm × 950–1200mm | SH: 450mm | SD: 480mm | 1200 × 700mm / 800mm |
| Continuous Wall Banquette | Custom Length × 650mm × 950mm | SH: 450mm | SD: 480mm | Modular 600 × 600mm or 700 × 700mm |
| U-Shape / Circular Booth (6-8 Persons) | 2200mm × 1800mm × 1050mm | SH: 450mm | SD: 500mm | 1200 × 800mm / 1400 × 800mm |
Inside every Ron Group custom booth is a contract-grade internal architecture built by our restaurant booth manufacturer foshan master craftsmen for relentless commercial turnover across our bespoke commercial banquette seating collections.

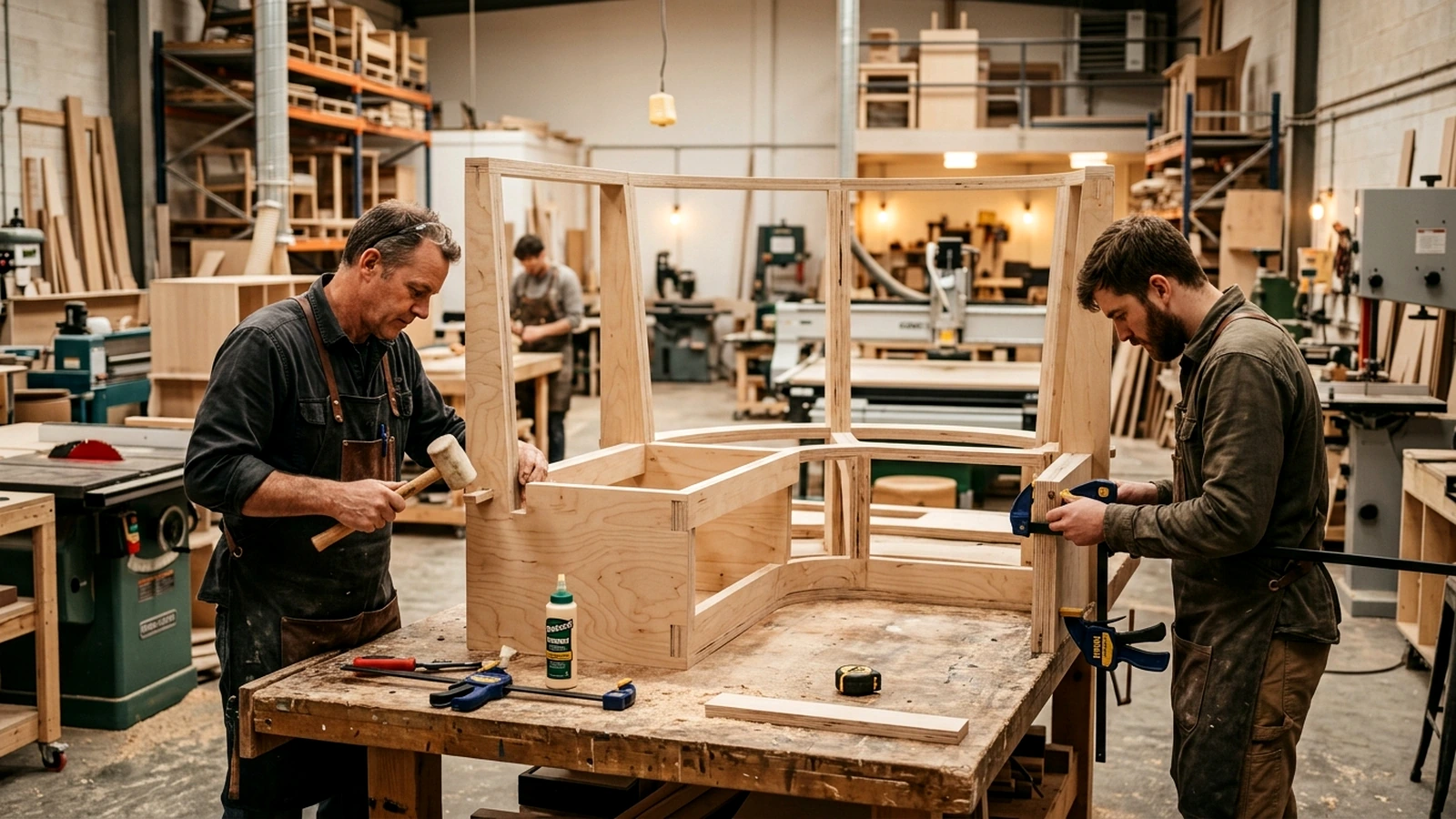

Kiln-dried solid birch timber (strictly 8–12% moisture content per digital pin meter) with CNC-cut 18mm E0 birch marine plywood side gables, bolted with corner steel gusset plates to support >350kg static loads without racking or joint separation.
Heavy-duty heat-treated serpentine steel springs spaced at 80mm intervals, cross-linked with silent paper-coated tie wires and noise-damping clips to eliminate squeaks and spring fatigue under continuous commercial guest cycles.
Cold-cure high-resilience polyurethane foam (ASTM D3574 dynamic fatigue tested: <8% height loss, 50 ILD firmness) layered with 20mm soft topping foam, formulated by our commercial banquette engineering team for 8+ year sag resistance.
Aramid and glass-fiber fireproof interliner strictly compliant with CAL 117-2013 / 16 CFR Part 1640 (US) and BS 5852:2006 Crib 5 (UK/EU), engineered by our hospitality seating technical department to prevent flame penetration into the core foam.
Heavy-duty commercial microfiber, silicone leather, or stain-treated hospitality fabric (≥100,000 double rubs per ASTM D4157 / ISO 12947-2), double-stitched with bonded nylon thread and water-repellent backing.
Protected by CNIPA Utility Model Patent ZL202421884920.X (Modular Quick-Lock Joint Architecture for 15-minute toolless site installation) and CNIPA Patent ZL202322267193.8 (Acoustic-Damped Core reducing dining room noise by 12–18 dB).
Why evaluating a certified restaurant booth manufacturer foshan and reputable booth seating manufacturer china protects hospitality operators against premature frame cracking, foam sagging, and fire code violations.
| Component | RON GROUP Longjiang Factory Standard | Unvetted Budget Workshop |
|---|---|---|
| Internal Timber Frame | Kiln-dried birch hardwood (8–12% MC) + 18mm E0 birch marine plywood | Wet pine/fir (>18% MC) + 12mm scrap MDF (warps & rots) |
| Seat Cushion Foam | 45–55 kg/m³ Virgin cold-cured polyurethane foam (ASTM D3574, 50 ILD) | <25 kg/m³ Recycled bonded scrap foam (sags and smells in 6 months) |
| Upholstery Abrasion | ≥100,000 Double Rubs (ASTM D4157 Wyzenbeek) / 100k Martindale | 15,000–20,000 cycles (peels under sanitizer sprays) |
| Fire Certification | Official SGS/Intertek CAL 117-2013 & BS 5852 Crib 5 certificates + law label | No certificates (fails fire inspection, risking venue closure) |
| Field Assembly & Joinery | Patented Quick-Lock (CNIPA ZL202421884920.X) toolless 15-min site install | Manual wood screws and nails that loosen and squeak |
| Prototyping Speed | Agile 1:1 pre-production sample fabrication and design validation | 25–35 Days with multiple rework cycles |
As an ISO 9001 certified contract banquette specialist, Ron Group maintains rigorous in-house quality testing protocols to comply with global hospitality fit-out regulations.

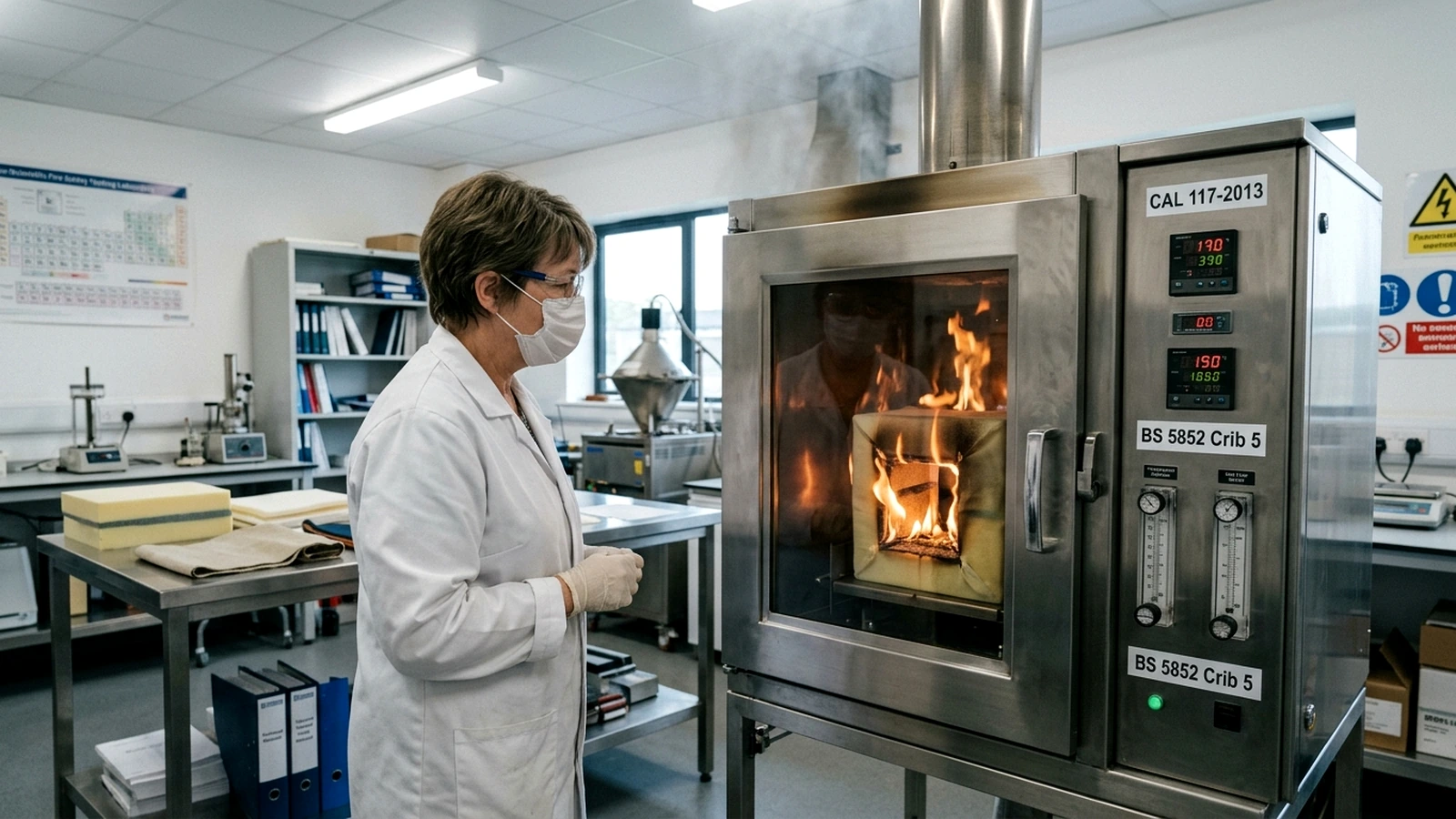

Every restaurant booth produced by our booth seating manufacturer china team is engineered with dual-certified fire-retardant barriers. For the North American market, we provide full compliance with CAL 117-2013 / 16 CFR Part 1640, including permanent sewn-in subframe law labels and laboratory test certifications. For UK, Middle East, and European projects, we incorporate heavy-duty graphite-treated combustion-modified high-resilience (CMHR) foam and fire interliners meeting BS 5852:2006 Clause 11 Crib 5 ignition source standards.
Test Gate: Zero smolder progression after 45 minutes; self-extinguishing flame spread under 100mm.

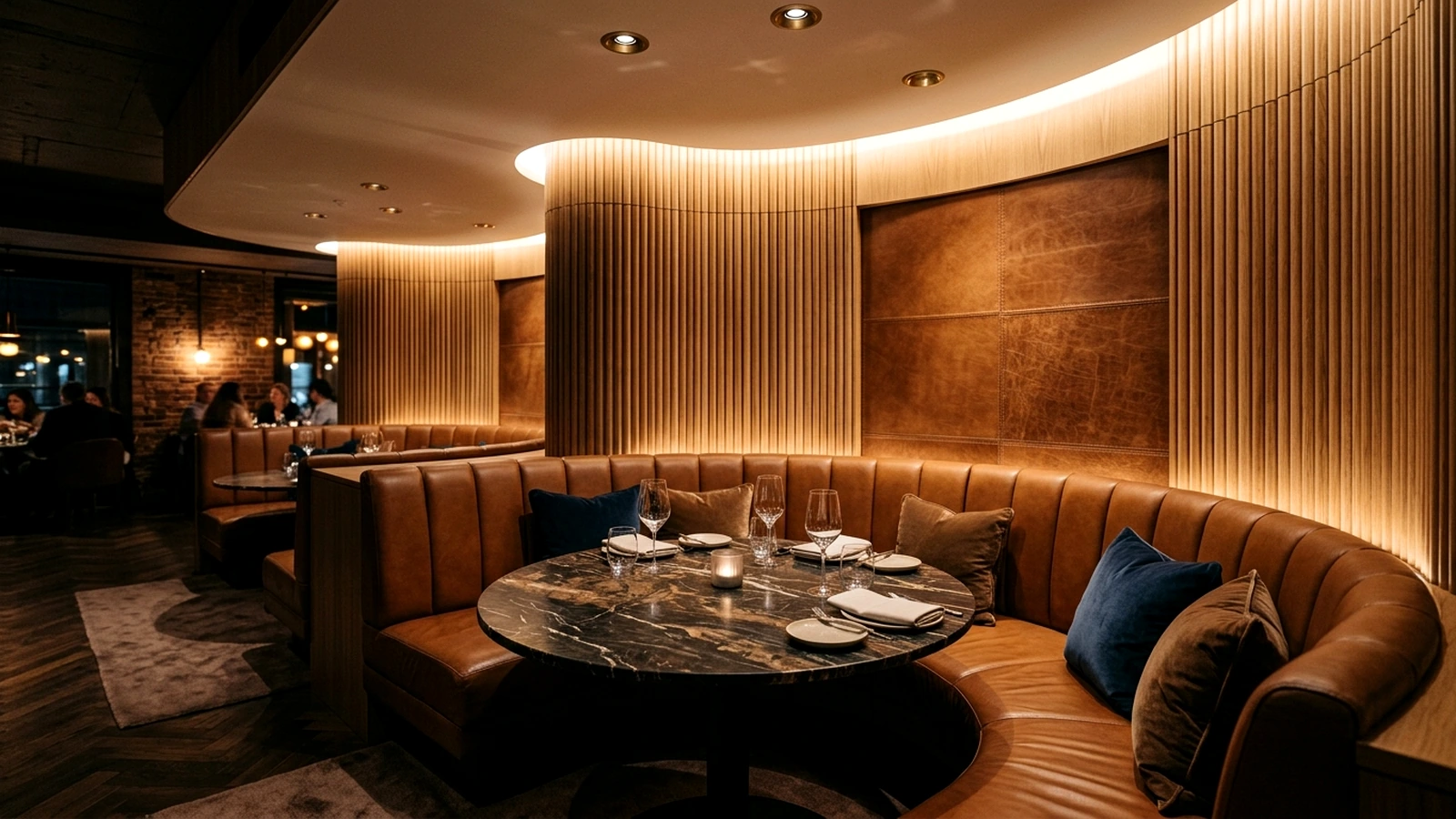

Unlike generic carpentry workshops, our Longjiang custom seating facility integrates proprietary CNIPA Utility Model Patents. Patent ZL202421884920.X (Modular Quick-Lock Joint) features laser-cut interlocking steel male-female brackets pre-mounted onto internal hardwood gables, enabling site contractors to lock modular sections together in under 15 minutes without visible fasteners. Patent ZL202322267193.8 (Acoustic-Damped Core) introduces micro-perforated acoustic baffling beneath the seat deck to attenuate ambient restaurant echo by 12–18 dB.
Site Efficiency: Reduces overseas installation labor costs by up to 70% with zero on-site drilling.

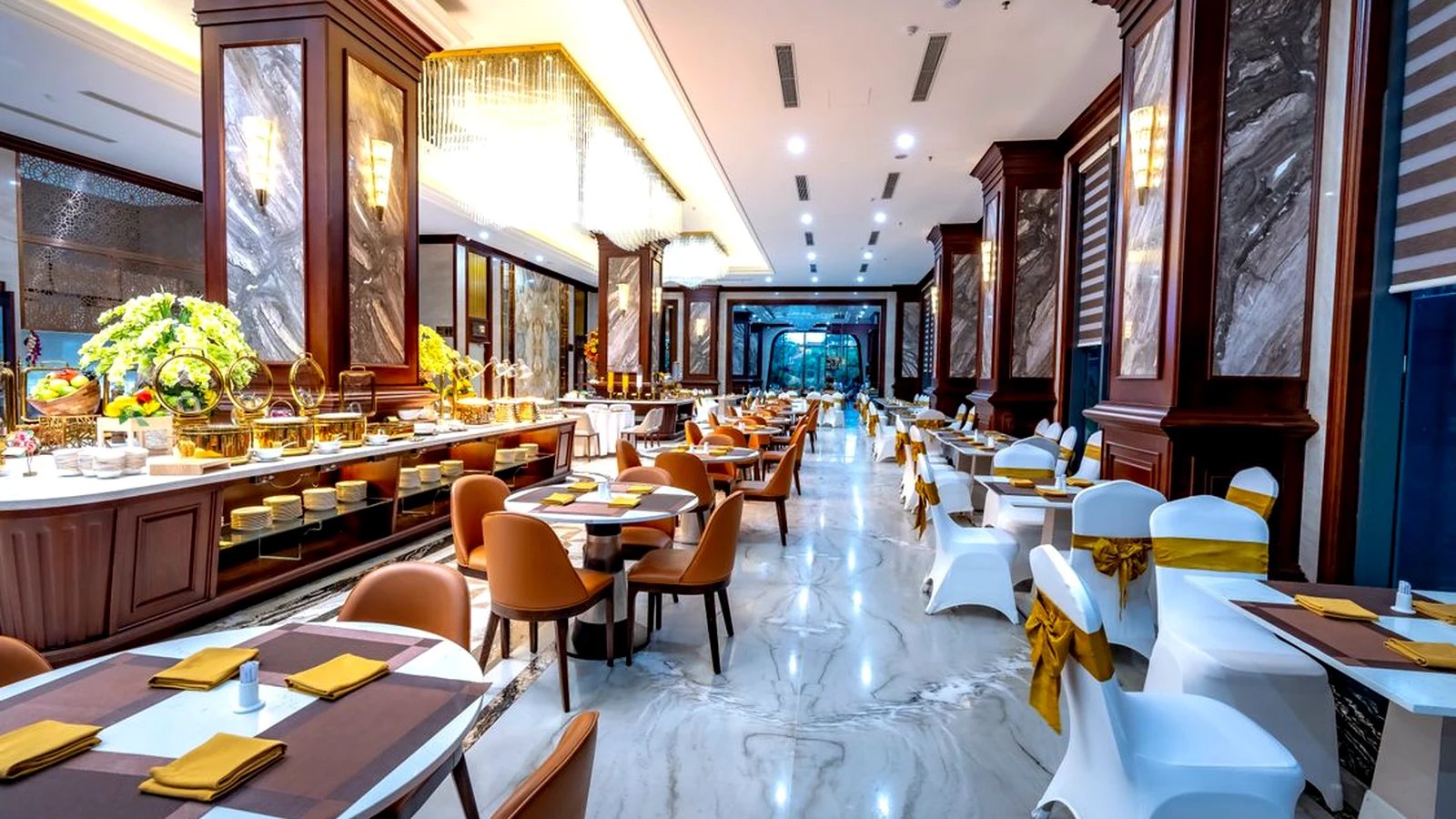

Proven high-traffic seating performance from Ron Group, the premier restaurant booth manufacturer foshan and trusted booth seating manufacturer china. Explore our portfolio of hospitality project case studies across 108 countries.
“Ron Group's Longjiang custom booth plant produced 18mm birch plywood banquettes with CAL 117 certified foam that endure 18-hour daily turnover with zero sag across 45 locations.”
“The bespoke curved leather banquettes and acoustic-damped cores created exceptional dining intimacy. The 1:1 prototyping in Foshan was flawless from shop drawing to installation.”
“Toolless quick-lock modular joints cut on-site assembly time to 15 minutes per booth. The 100,000 double-rub silicone upholstery withstands rigorous commercial sanitizers effortlessly.”
Answers to engineering, lead time, and prototype sign-off questions for hospitality procurement directors.
Ron Group operates a proprietary 12,000+ sqm core manufacturing facility in Lecong, complemented by our specialized Longjiang partner cluster. Unlike trading intermediaries who outsource orders to unregulated family workshops, choosing Ron Group as your direct restaurant booth manufacturer foshan guarantees complete control over 18mm birch marine plywood framing, automated CNC cutting, certified cold-cure foam pouring, and agile 1:1 rapid physical sample fabrication.
As a seasoned booth seating manufacturer china, our engineering department converts conceptual designer renderings into precise 2D/3D fabrication shop drawings. We pre-route fire-rated PVC electrical conduit chases inside the plinth base and backrest for integrated AC power outlets, USB-C fast charging stations, and concealed LED under-seat cove lighting, ensuring seamless plug-and-play installation on site.
Commercial restaurant booths require high-resilience (HR) cold-cured polyurethane foam with a certified density of 45-55 kg/m³ (50 ILD firmness per ASTM D3574). This ensures the seat maintains 92%+ of its original height and rebound resilience after 100,000 compression cycles without sagging or bottoming out under 18-hour daily turnover.
In-depth guides on booth procurement, site survey coordination, and production release controls.
Prepare a comprehensive booth RFQ with frame specifications, foam densities, mockup sign-offs, and lead-time controls.
Coordinate site measurements, wall blocking, electrical chase integration, and punch-list acceptance without delays.
Evaluate factory capabilities, CAD shop drawing ownership, foam hardness verification, and packing protocols.
Upload your architectural seating layout or moodboard renderings directly to Ron Group, the premier restaurant booth manufacturer foshan and trusted booth seating manufacturer china. Before requesting your 1:1 prototype, view completed restaurant booth installations across global dining chains.
